Quantumdata 804

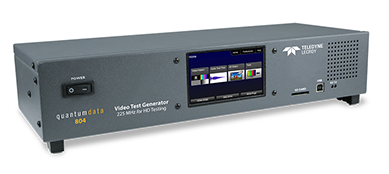

The Teledyne LeCroy rack mountable quantumdata 804 Video Test Generator is optimized for testing modern HDMI HDTVs. The 804 Video Generator supports testing of HDMI resolutions operating up to 225 MHz.  This enables testing HD TVs with up to 225 MHz clock rates.

The quantumdata 804 Video Generators feature four (4) HDMI outputs—all active simultaneously—for testing HDTVs with multiple HDMI inputs. This eliminates the need for splitters often required for testing each HDMI input on an HDTV. These video generators can output component analog and composite analog video as well as HDMI. Switching between video timings and images is fast. The 804 are equipped with all the standard video timings and test patterns—including support for 3D—necessary for testing HDTVs including tests for HDMI protocols such as HDCP, EDID and CEC.

The 804 Video Generators test compressed and uncompressed HDMI audio formats using a variety of audio test signals. An HDTV’s analog audio inputs can also be tested using the instrument’s programmable analog audio outputs.

Manufacturing engineers can choose to operate either 804 series instrument in a few different ways. The instrument can be controlled through the user friendly touch screen interface which also provides status during testing. For control by an automated test system, the 804 can be operated through an extensive command set. The 804 supports the same commands that production facilities have become familiar with on The Teledyne LeCroy quantumdata 802 and 881 series test instruments. Alternatively, an optional programmable keypad can be attached to the USB Port or RS-232 port for keypad control.

The 804 provide the necessary features and functions for testing HDTVs on a production and are offered an attractive price. Contact for ordering and pricing information.

The following is list of some of key the 804/804A standard features and benefits. Please refer to the 804 Data Sheet for a list of all features, benefits, options and specifications.

804 HDMI Out (Tx) ports (4) – Four (4) HDMI output ports support the emulation a known-good HDMI source devices to test HDMI HDTVs and other sink devices up to 165 MHz pixel rate and 225 MHz TMDS clock rate for deep color. All four HDMI Tx ports output the same video format and test pattern.

Extensive format and test pattern library – Enables you to test a variety of video test cases on a high end HDTV including deep color and 3D.

Protocol tests on HDMI sinks – Enables you to verify proper operation of HDCP authentication, EDID and CEC on HDMI sink devices.

Composite analog video outputs – Test SDTV inputs for NTSC and PAL formats from composite and S-video outputs.

Component and RGB analog video outputs (VGA – HD15 connector) – Test analog video inputs on SDTVs, HDTVs as well as PC monitors up to 80 MHz (max speed). Resolutions higher than 80 MHz supported through pixel doubling.

Component analog video outputs (BNC connector) – Test analog video inputs on SDTVs and HDTVs up to 80 MHz (max speed). Resolutions higher than 80 MHz supported through pixel doubling.

Audio test tones and clips for uncompressed LPCM and compressed formats – Enables you to verify that an HDMI audio rendering device supports various audio formats including LPCM and Dolby and DTS compressed formats including Dolby TrueHD and DTS Master Audio.

Analog audio outputs – Supports compressed and uncompressed audio formats.

The following is list of some of key the 804/804A optional features. Please refer to the 804 and 804A Data Sheets for a list of all features, benefits, options and specifications.

THX Test Pattern Pack – The THX test patterns enable A/V professionals to calibrate the displays on high-end 3D-capable HDTVs to match the same standards as those used in post-production facilities worldwide.

Imaging Science Foundation (ISF) Test Pattern Pack – The ISF test patterns enable A/V professionals to calibrate the displays on modern high-end HDTVs.

China Res Test Pattern Package – The ChinaRes test pattern is specified by the National Testing and Inspection Center for Radio and TV Products of China. The image pack includes both a standard definition aspect ratio (shown right) and a high definition aspect ratio. This test pattern is supported at: 1920×1080, 1280×720, 720×576 and 720×480 resolutions.

The following is a list of some of important specifications of the 804. Please refer to the 804 Data Sheet for a list of all features, benefits, options and specifications.

Interfaces

• 804 HDMI Tx (4) – Connector: Type A; Pixel rate: Up to 165 MHz; TMDS rate: up to 225 MHz with deep color. Video Type/Sampling: RGB/YCbCr 4:4:4, 4:2:2 24/30/36 bit color; Colorimetry: ITU-R BT.601-5, ITU-R BT.709-5.
• VGA – Connector: HD15F; Pixel rate: up to 80 MHz with higher rates using pixel repetition.
• Analog component – Connector: HD15F; Video Type: YPbPr.
• Analog composite – Connector: BNC & Y/C S-Video.

Operation

• Embedded touch screen – Screen size: 480 x 272 resolution; 24 bit RGB color.
• USB – Serial command line through terminal emulation program.
• RS-232 – Serial command line for automated control.

Physical

• Power (AC) – VAC 100 to 240VAC; Power: 24 VA; Frequency: 47 – 63Hz.
• Dimensions – Height 3.25 inches (8.3 cm); Width: 16.5 inches (41.9 cm); Depth: 6.1 inches (15.5 cm).
• Weight – 6.62 LBS (3.0 kg).
• Environmental – Humidity: 30% – 80% RH non-condensing; Operating Temp: 32 – 104 F (0 – 40 C).
•

• ACCESSORIES:
•


• Power cords – Select one of the following power line cords:

  • USA Power Line Cord (p/n 30A00400A03) – The 6 foot line cord is provided with all 880 series generators. It is a detachable power cord used to provide power to the generator.
  • European Power Line Cord (p/n 30-00174) – The 6 foot line cord is a European CEE 7/7 – Type E/F Hybrid.
  • European Power Line Cord (p/n 30-00175) – The 6 foot line cord is a UK BS 1363 Type G.
  • Power Line Cord (p/n 30-00174) – The 6 foot line cord is provided with all 880 series generators. It is a detachable power cord used to provide power to the generator.

  Mounting options – You must choose at least one of the following options:

  • Desktop Kit (p/n 95-00067) – The Desktop Kit provides a set of feet for the bottom of the unit and extendable legs on the front to improve the viewing angle.
  • Rack Mount Kit (p/n 95-00066) – The Rack Mount Kit enables you to mount the 804 into a standard 19 inch relay rack. The 804 series video generators occupy 2 rack units of vertical space.

  The optional 804 Cable Kit (P/N 95-00068) – The optional Cable Kit includes the following items:

  • BNC to RCA adapter (p/n 30-00123) – The BNC to RCA adapter is used on the TV to allow a coaxial cable connection from the TV to the generator’s BNC TV output.
  • Null Modem (p/n 30-00124) – The null modem cable is used for connecting a PC to the generator to control the generator through the command line interface.
  • USB cable (p/n 30-00163) – The 3 foot USB cable used to connect the 804 peripheral USB connector a PCs Host USB connector.
  • Four (4) HDMI to HDMI cables (p/n 30-00146) – The 6 foot HDMI to HDMI cables are used to connect the video generator’s HDMI output ports to HDTV’s HDMI inputs.
  • VGA to VGA cable (p/n 30-00181) – The 6 foot VGA to VGA cable used to connect the generator VGA connector to the VGA connector on the computer monitor from the generator’s HDMI output connector.
  • VGA to HDTV adapter (p/n 99-00503) – The 0.5 foot VGA to HDTV adapter cable is used to connect a VGA cable from the generator to a TV monitor with RCA connectors.
  • S-Video cable (p/n 30-00182) – The 6 foot S-Video cable used to connect the video generator’s S-Video output to an HDTV’s or A/V Receiver’s S-video input.
  • RCA Composite cable (p/n 30-00184) – The 6 foot RCA Composite cable used to connect the video generator’s RCA Composite output to an HDTV’s RCA Composite input.
  • RCA SPDIF cable (p/n 30-00185) – The 6 foot SPDIF cable used to connect the video generator’s SPDIF output to an HDTV’s or A/V Receiver’s SPDIF input.
  • Optical cable (p/n 30-00186) – The 6 foot Optical cable used to connect the Optical output to an HDTV’s or A/V Receiver’s Optical input.

  Other optional accessories – Select any of the following accessories.

  • ESD-2 (00-00189) – Provides external ESD protection for HDMI connectors.
  • Remote keypad (00-00123) – Allow entry of numeric command to load images and formats from up to 43? (1.1 m) from the generator.
